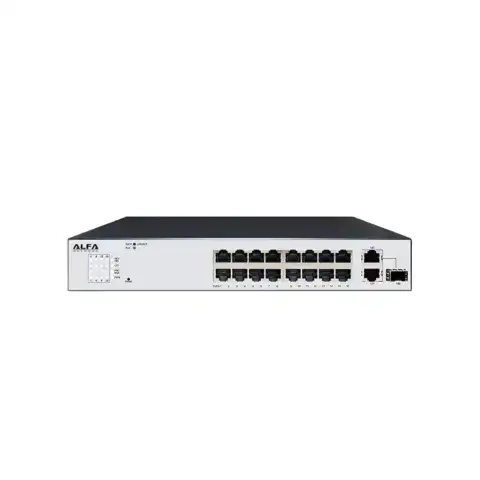

16 ports 10/100 + 2 ports Gigabit Web Smart PoE Switch
-
Model No.
APS1602S
-
Made in
Taiwan
Exporter, Importer, Manufacturer, ODM, OEM
-
Taiwan International Trade Shows' Exhibitor
-
e-Portal Supplier for the 22th year
-
Price Range
Contact supplier
-
MOQ
-
-
Origin
Taiwan
-
Online Selling
false
-
Taiwan Product Mark
Made in Taiwan
-
Update Date
2025-12-24
-
Payment Terms
TT, PayPal
-
Offline Method
TT, PayPal
APS1602S is a high-performance 16-port Ethernet with 2-port Gigabit Web Smart PoE Switch that offers a perfect blend of performance and cost-efficiency. It features 16 PoE ports compliant with IEEE 802.3af/at standards, each delivering up to 30 W, with intelligent detection to ensure safe power delivery to standard PD devices. With an intuitive Web-based management interface, you can easily configure VLANs, QoS, and monitor traffic, making it the ideal backbone for IP surveillance and SMB networks.
APS1602S is built for performance and reliability. Perfect for offices, residential buildings, hotels, and campus networks requiring secure, scalable PoE connectivity.
Key Features
- Complies with IEEE 802.3at/af standard
- Delivers up to 30 W per port
- Auto-identifies standard PoE devices to deliver safe power.
- Supports 802.1Q VLAN, Port VLAN, QoS, bandwidth control and storm suppression.
- Supports Web management, which is simple and easy to maintain
- Support port traffic statistics, port monitoring, cable detection, and loopback protection
- Support PD-ALIVE function
Specifications
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE
802.3at, IEEE 802.3af, IEEE 802.3az
Network Ports
16x 10/100 Mbps Ethernet ports
1x 10/100/1000 Mbps Gigabit Combo port
1x 10/100/1000 Mbps Uplink port
LED Indicators
PWR, LNK/ACT, PoE, PoE Max
PoE Ports
1 - 16 ports with 802.3at/af PoE injector function
PoE Pin Assignment
1 / 2 (+), 3 / 6 (-); 4 / 5 (+), 7 / 8 (-)
PoE Output per Port
Up to 30 W
Total PoE Power Budget
185 W
Power Supply
200 W
Forwarding Mode
Store-and-Forward
Switching Capacity
7.2 Gbps
MAC Address Table
8K with auto-learning and auto-aging
Jumbo Frame
9216 Bytes
Packet Buffer Memory
4 Mbit
Forwarding Rate
5.4 Mbps
Input Voltage
AC 100 – 240V, 5A 50/6 0Hz
Operating Temperature
0 °C to 45 °C
Operating Humidity
10%–90% RH (non-condensing)
Dimensions (L × W × H)
280 × 180 × 44 mm
Surge Protection
±4KV (common mode), ±2KV (differential mode)
MTBF (Mean Time Between Failures)
> 100,000 hours
Software Features
Category
Software Features
Detailed Description
Configuration
VLAN
Static VLAN configuration
VLAN settings management
QoS
Supports DSCP priority mapping
Supports 4 queues with SP and WRR scheduling
IGMP
IGMP related multicast control
Trunk Group
Trunk group supports up to 8 ports
Loop Prevention
Loop prevention configuration
Port Mirroring
Port-based mirroring for traffic monitoring and trouble shooting
Port Isolation
Port isolation to improve security and reduce lateral traffic
Bandwidth Control
Bandwidth control / rate limiting
Jumbo Frame
Jumbo frame enable/disable and related settings
MAC Constraint
MAC constraint control
EEE
Supports Energy Efficient Ethernet
Security
MAC Address Table
Static MAC entry support
MAC address search function
Storm Control
Storm control to mitigate
Broadcast/multicast/unknown traffic bursts
Monitoring
Port Statistics
Port traffic statistics monitoring
Cable Diagnostic
Cable diagnostic tools for link trouble shooting
PoE
PoE Information
Displays total power, power consumed and MCU software version
PoE Configuration
PoE basic configuration, port priority and power control
Maintenance
Tools
Firmware upgrade, configuration backup & restore, reset, reboot
