5G / LTE Omni Antenna Magnetic mount

5G / LTE Omni Antenna Magnetic mount

summary

5G / LTE Omni Antenna Magnetic mount

  • Model No.

    AOA-4G-5MGN

  • Made in

    Taiwan

ALFA NETWORK INC.

Exporter, Importer, Manufacturer, ODM, OEM

  • Taiwan International Trade Shows' Exhibitor

  • e-Portal Supplier for the 22th year

Contact Supplier Request for Quotation

More About This Product Company Profile

epurl
https://alfa.en.taiwantrade.com/product/5g-lte-omni-antenna-magnetic-mount-3305630.html
price

  • Price Range

    Contact supplier

  • MOQ

    -

  • Origin

    Taiwan

  • Online Selling

    false

details

  • Ad Slogan

    5G / LTE Omni Antenna Magnetic mount

  • Taiwan Product Mark

    Made in Taiwan

  • Update Date

    2025-12-11

offline-payment

  • Payment Terms

    TT, PayPal

  • Offline Method

    TT, PayPal

attachment
key-features

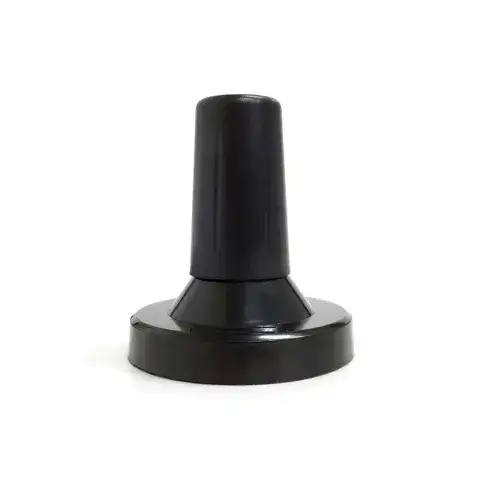

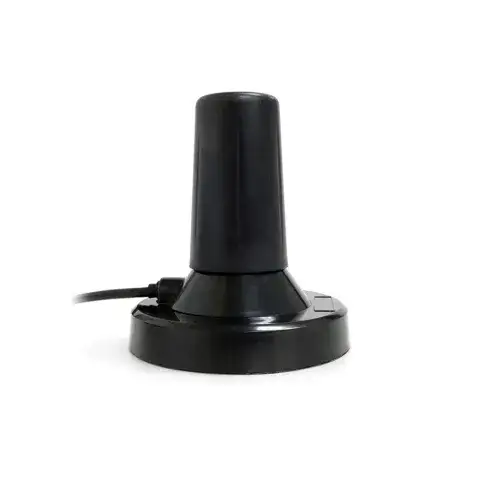

AOA-4G-5MGN is a compact wideband magnetic-mount antenna for 2G/3G/4G/5G LTE (698–960 / 1710–3800 MHz). It ensures durability and stable performance on a conductive ground plane, with acceptable results even on a desk. It provides wideband coverage, consistent low-angle radiation, and strong horizontal-plane gain, making it ideal for mobile and fixed applications, including public safety, utilities, fleet systems, smart cities, and industrial applications.

Key features

  1. Design for 2G/3G/4G/5G cellular
  2. RF cable length: 3 M (9.8 ft)
  3. AOA-4G-5MGN-NM: N male connector
    AOA-4G-5MGN-SMA: SMA male connector
  4. Robust Magnetic mounting for car, RV, vending machine, surveillance, IoT

Specifications

Frequency

698 - 960 MHz

1710 - 3500 MHz

Gain

2.15 dBi@ 698-960 MHz

5 dBi@ 1710 – 2170 MHz

4 dBi@ 2400 – 2700 MHz

3 dBi@ 2800 – 3500 MHz

V.S.W.R

≦ 2.5

Radiation

Omni

Polarization

Vertical

Maximum Input Power

50 W

Impedance

50 Ω

RF Connector

N male

Cable Type

RG58U

Cable Length

3 M (9.8 ft)

Mounting

Magnetic mount

Dimensions

Ø 110 x 120 mm

Weight

900 g

Operating Temperature

-40°C to 70°C

Rated Wind Velocity

80 m/s

Order Information

AOA-4G-5MGN-NM

N-male

AOA-4G-5MGN-SMA

SMA-male

2D Drawing Dimension

VSWRPattern****

Pattern
