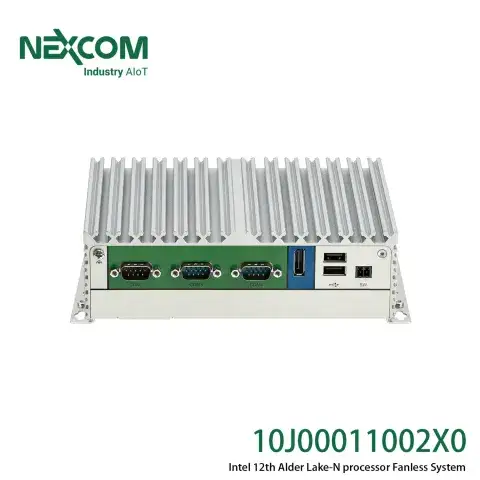

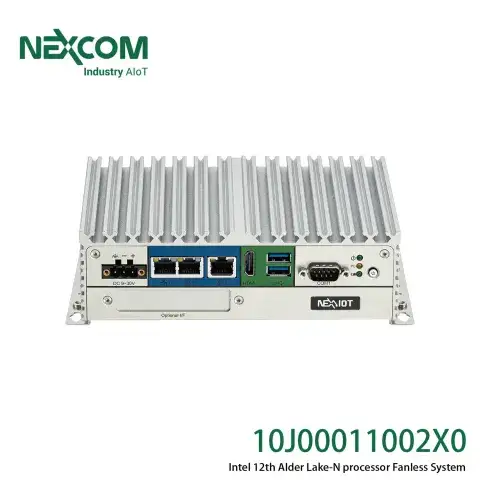

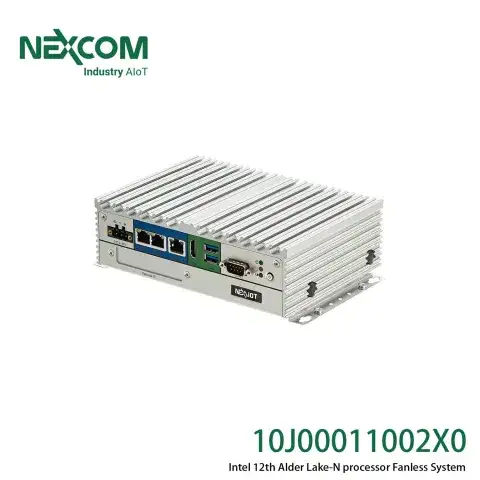

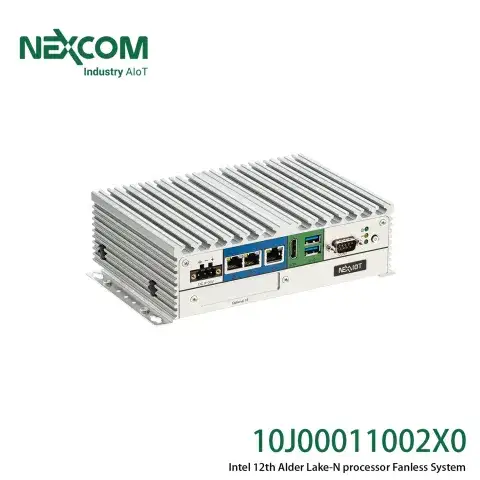

NexAIoT Industrial Fanless Computer | NISE110-A01
-
Model No.
10J00011002X0
-
Made in
Taiwan
NEXCOM INTERNATIONAL CO., LTD.
Exporter, Manufacturer, ODM, OEM
-
Taiwan International Trade Shows' Exhibitor
-
e-Portal Supplier for the 3rd year
-
Price Range
USD 1370
-
MOQ
-
-
Origin
Taiwan
-
Online Selling
true
-
Free Shipping
true
-
stock
3
-
unit
Piece(s)
-
domain-id
2
-
lang-id
42
-
1-3 Piece(s)
USD 1370
14 Processing Days
- idealez_paypal
- idealez_card
- idealez_alipay
-
Ad Slogan
NISE 110-A01: Rugged Design, Smarter Connections
-
Taiwan Product Mark
Made in Taiwan
-
Update Date
2026-08-13
-
CPU Support
Onboard Intel Celeron® Processor N97 quad-core 2.0Ghz
-
Main Memory
DDR5 4800 SO-DIMM INNODISK 8GB
-
Display Option
Dual independent display: HDMI + DP
-
I/O Interface-Front
ATX power on/off switch
LED indicator: power status, RTC battery low, programmable
3 x Intel® I226-IT 2.5GbE TSN LAN port; supports WoL, teaming and PXE
2 x USB 3.2 port
1 x HDMI port
1 x DB9 for COM1, supports RS-232 only
1 x Optional I/F opening for optional function output or module interf
1 x 3-pin DC input, supports +9 to 30V DC -
I/O Interface-Rear
2 x USB2.0 ports
1 x 2-pin remote power on/off switch
1 x Display port
1 x DB9 for COM2, support RS232 only
2 x DB9 for COM3 & COM4 -
I/O Interface-Internal
4 x GPI and 4 x GPO (5V, TTL type)
1 x NANO-SIM holder
TPM 2.0
Mic-in / Line-out (optional) -
Storage Device
1 x miniPCIe for mSATA
1 x M.2 Key B 2242/2280 for SATA/PCIex2 SSD -
Expansion Slot
1 x mini-PCIe socket support optional Wi-Fi/4G LTE modules
1 x M.2 Key B socket support optional 5G/ 4G LTE/ Storage modules -
Power Requirements
Power input: +9 to 30V DC
1x Optional 24V, 60W power adapter -
Dimensions
185mm (W) x 131mm (D) x 56mm (H) without wall mount bracket
-
Construction
Aluminum chassis with fanless design
-
Environment
Operating temperature Ambient with air flow
Storage temperature: 40°C~80°C
Relative humidity: 95% at 40°C -
Certifications
CE approval
EN 61000-6-2
EN 61000-6-4
FCC Class A
UL -
OS Support
Windows 11
Windows 10 IoT Enterprise, 64 bit
Linux Kernel version 4.1 -
Weight Information
3.1kg
Compact Yet Powerful: Designed for Industrial Intelligence
The NISE 110-A01 is powered by the Intel® Celeron® N97 quad-core processor, delivering a strong balance between performance and energy efficiency for edge computing and industrial automation applications. Its fanless aluminum chassis ensures silent operation and long-term reliability, even in harsh environments. With a compact footprint, it is ideal for installations in space-constrained areas such as control cabinets or vehicle-mounted systems.
Versatile Connectivity with TSN-Ready Networking
Equipped with three Intel® I226-IT 2.5GbE LAN ports supporting Time-Sensitive Networking (TSN), the NISE 110-A01 enables high-speed, low-latency communication for real-time industrial tasks. It supports Wake-on-LAN, PXE boot, and LAN teaming. The system also offers dual display outputs (HDMI and DP), multiple COM ports (including RS-232/422/485), USB 3.2 and 2.0 ports, and flexible internal expansion options such as mini-PCIe and M.2 for wireless and I/O modules.
Built for Extremes: Rugged Design, Wide Temperature Range
Designed to operate in extreme environments, the NISE 110-A01 supports a wide operating temperature from -40°C to 60°C, making it suitable for outdoor and factory floor deployments. It features robust shock and vibration resistance in compliance with IEC 60068 standards and accepts wide-range DC input (9 to 30V) with AT/ATX power mode support. Combined with industrial-grade components and TPM 2.0 security, it ensures stable and secure performance in mission-critical applications.
https://im01.itaiwantrade.com/ed5bebab-34fe-4932-8dec-bd454376deab/1756876712727.png
- Onboard Intel Celeron® Processor N97 quad-core 2.0Ghz
- 2 x Display output, 1 x HDMI and 1 x DP port
- 3 x Intel® I226-IT 2.5GbE TSNLAN ports; support WoL, teaming and PXE
- Storage support mSATA and M.2 SATA & PCIex2 modules
- 1 x mini-PCIe Wi-Fi/LTE wireless module
- 2 x USB3.2
- 2 x USB2.0
- 2 x DB9 for RS232/422/485
- 2 x DB9 for RS232
- Support -40°C~60°C extended operating temperature
- Support 9~30VDC input; support AT/ATX power mode
