Thermal Circuit Breakers for Home Appliance A-0702A 1A - 20A

Model No.
A-0702A
Made in
Taiwan
Supplier
SANG MAO ENTERPRISE CO., LTD.More About This Product
Request for Quotation

Professional circuit breaker and motor thermal overload protector.

Spec

  • Type : Conventional,Mini,Moulded Case
  • Reset : Manual Push Reset
  • Frame : A-TYPE
  • Current : 6A, 7A, 1A, 2A, 2.5A, 3A, 5A, 10A, 12A, 15A, 16A, 20A
  • Voltage : 12 VDC, 125 VAC, 250 VAC
  • Poles : 1 pole
  • Brand Name : SANG MAO

Key Features

-Single pole thermal circuit breaker in a miniaturised design.
-Protect against overcurrent and short circuit of a broad range of equipment and systems.
-Current rating: 1~20 Ampere.
-VAC & VDC rated protection.
-This series is suitable for diverse applications such as DIY Tool、Official Equipment、Generator、Juice Maker、Food Processor、Battery Charger、Table Saw、AC-DC Converter、Common Protect, etc.

We offer Custom Design & Manufacturing services (OEM/ODM) for all Circuit Breakers product specifications.



SPECIFICATION:
STANDARD RATING: 1 - 20 AMPERE.
INPUT POWER: 12 VDC /125 VAC / 250 VAC.
DIELECTRIC STRENGTH: 1500 VAC / 1 MINUTE.
RATED CONDITIONAL SHORT-CIRCUIT CURRENT :
IEC-934 "PC. 1 1000A" WITH " FUSE 16 A gL / gG" .
INSULATION RESISTANCE : > 100 MΩ.
RESET: MANUAL PUSH RESET.

APPROVALS:
CSA APPROVAL: 2 - 15A 125 VAC ,60Hz TC2,OL0,SC:C1,1kA,125VAC
VDE APPROVAL: 2 - 16A 250VAC
CSA c/us APPROVAL: 2 - 15A 125 VAC / 60 Hz

APPLICATION:
DIY TOOL
OFFICIAL EQUIPMENT
BATTERY CHARGER
TABLE SAW
GENERATOR


Sang Mao Enterprise Co., Ltd.
No.8, JING HUA ROAD, YONG KANG INDUSTRIAL DISTRICT,
TAINAN CITY, TAIWAN ( 71041 )
Tel: 886-6-233-1061   Fax: 886-6-232-4223

https://www.sangmao.com
https://www.thermokey.com.tw

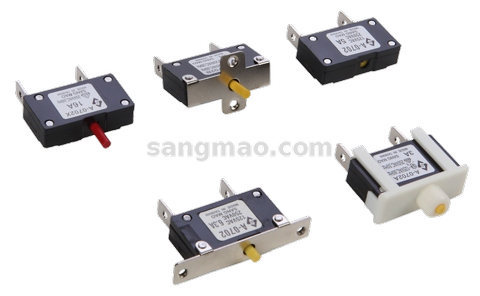

Thermal Circuit Breakers for Home Appliance A-0702 series

Product Certification

Payment Details for Offline Orders

  • Payment Terms : TT ,PayPal
  • Minimum Order : 1 Piece(s)
