Advanced

Fully-Electric Multi-Slide Die-Casting Machine

Model No.
T-SOK ART-1
Made in
Taiwan
Supplier
T-SOK CO., LTD.More About This Product
Request for Quotation

Your energy-efficient quiet and clean production solution for the future.

Spec

  • Type : Zinc

Key Features


T-SOK Electric Multi-slide-Technology

A conventional hot chamber die casting tool is usually made of two die halves: a fixed die half and an ejector die half. When the die casting machine clamps together, the two die halves are locked and held together by the machine's hydraulic pressure. The surface where the ejector and fixed halves of the die meet and lock is referred to as the die parting line. Once the dies are clamped together, an injection process takes place in the fixed die half. The cavity is fed through a sprue and runner system. This cavity is filled with liquid metal each time a shot is made. It is common practice to add overflows to vent the tool to avoid trapping air during the injection process.

Although this conventional die casting technology has become one of the dominant methods people make parts. It still has its drawbacks. The ratio of part weight to scrap weight is too high, the tooling is expensive, and its high energy consumption rate, are all examples of this conventional technology's disadvantage.

The T-SOK's electric multi-slide hot chamber die casting helps solve these problems. Instead of using two die halves, T-SOK electric multi slide die casting machines consists of two to six slides all moving independently, and each with its own die blocks. When the die casting machine closes, the die blocks from a complete cavity to inject the material. Instead of feeding the cavity through a sprue and runner system, it is directly injected through the parting line, thus eliminating the need of the sprue.

Evolutionary multi slide design, mold design diversity, wide selection of mold parting directions (two to six directions), the core can be removed from any angle and direction. High mold precision, suitable for high precision and high complexity parts production, up to 40 shots per minute, and easy die change over in 20 minutes.


Electric & Hydraulic

Eco-Friendly & Energy-Saving
The electric energy is directly converted into kinetic energy. Energy consumption reduces 50-70%. There's no necessary hydraulic oil cooling system.
Good workplace environment
Reduce operating noise. No messy leaks. No fire risk and contamination issues.
Easy maintenance and safety
Fewer components, less maintenance, and lower production waste. Servo motors run independently with every axis, much easier to troubleshoot and
repair.
User-Friendly design
Simplified installation and control. Less manual control. Easier to control by touch panel.
Stable quality and density
Precise control of speed, force and position. Eliminate the 「Hammer Effect」 and minimize burrs. Good parts density,

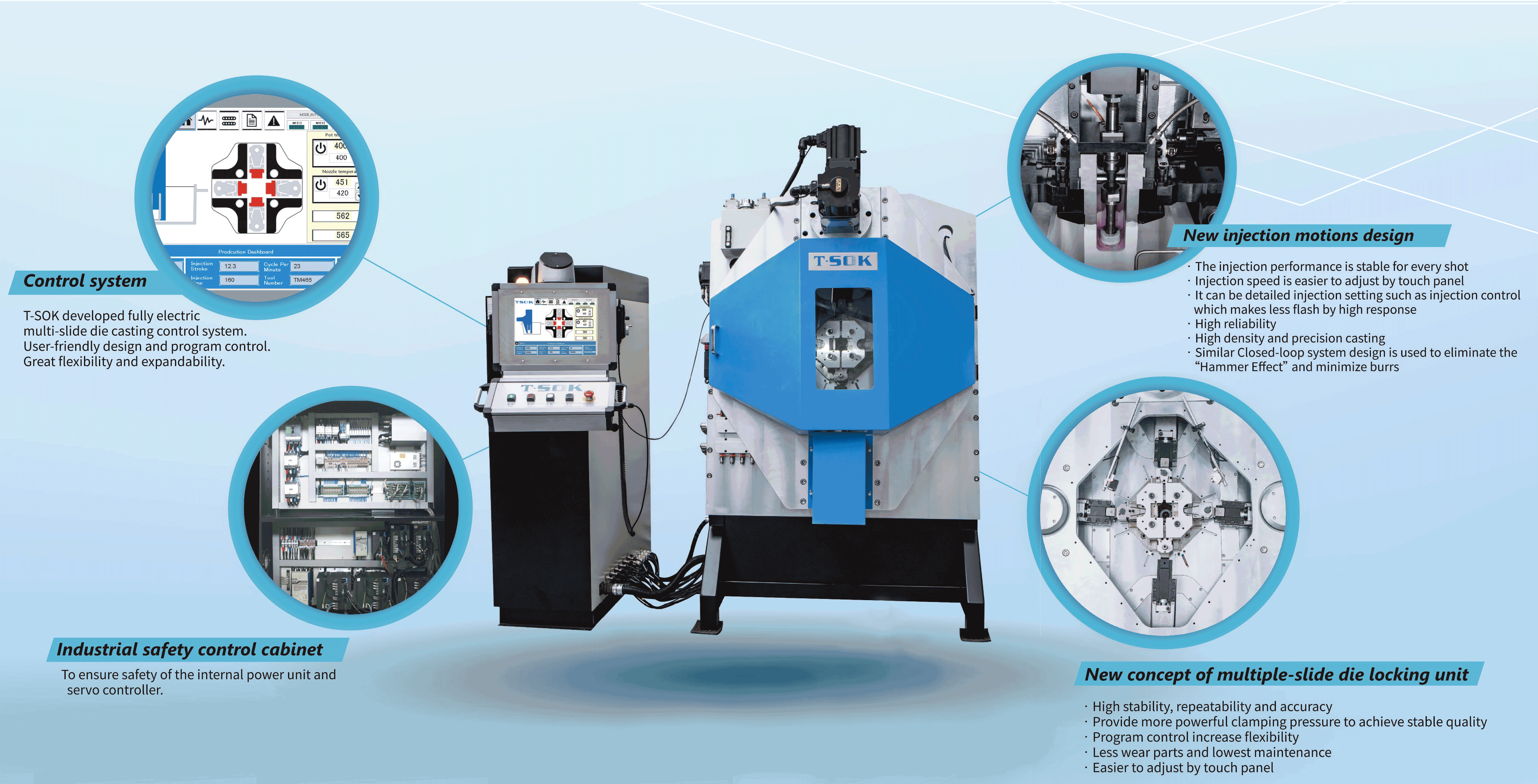

New Injection motions design

The injection performance is stable for every shot.
Injection speed is easier to adjust by touch panel.
It can be detailed setting such as injection control which makes less flash by high response.
high reliability
high density and precision casting.
similar closed-loop system design is used to eliminate the "hammer Effect" and minimize burrs.

New concept of multiple-slide die locking unit

high stability, repeatability and accuracy.
provide more powerful clamping pressure to achieve stable quality
program control increase flexibility
Less wear parts and lowest maintenance
Easier to adjust by touch panel

Our services include:

Machine manufacturing
Die casting tooling
Design, manufacture and sampling of multiple-slide and conventional tooling, delivering high quality.
Machine installation and training
Technical support

Last Update : 2021-03-30
