4K SONY IMX415 USB CMOS WebCam with 2*Mic

Model No.
MCA-6080
Supplier
MIDAS TOUCH SOLUTIONS INC.More About This Product
Request for Quotation

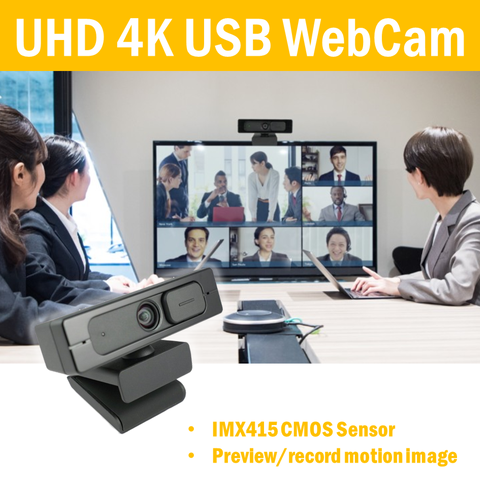

High Quality 4K USB SONY IMX 415 CMOS WebCam

Spec

  • Style : Mini Camera
  • Technique : Net / Work
  • Operating Temperature : 0-+70C
  • Optical formate : IMX415 1/2.5 inch 8.51M CMOS Sensor
  • Active resolution : 3840H*2160V
  • Unit pixel size : 1.62um(h)*1.62um(v)
  • F/No.  : 2.2+/-0.5%
  • Field of view : 88.2
  • Focus : 50cm
  • Distortion : No distortion processing

Key Features

MCA-6080 is a USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio features, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit, connector, and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through a USB interface to a PC.

MCA-6080 not only offers up to 4K resolution (3840X2160) for image applications to take still images but also offers a video stream for end-user to preview/recording motion images through the USB 2.0 interface. And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode,  4K resolution up to 30fps at MJPG mode. It also provides stereo audio input by two
microphones.

MCA-6080 builds in AE, AWB, and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end-user well tune the image by property page.


Feature
  • Comply with USB2.0 and USB Video Class 1.1 standards, USB Audio Class 1.0 standards
  • Support for still image capture and video streaming
  • Automatic image control
  • Auto Exposure Control (AEC)
  • Auto White Balance (AWB)
  • Automatic gain control (AGC)
  • Brightness/contrast adjustment
  • Hue/saturation adjustment
  • Support 3840 x2160 frame rate up to 30fps @MJPG
  • Support still image resolution: 3840 (H) x 2160 (V)
  • Audio input: 2×microphone (analog microphone)
  • LED indication (blue)
  • Input voltage: DC 5V
  • USB connector: Type C

Key Specification

Module Specification

Size (L*W*H/mm)
100.0 x 22.0 x 34.8 mm (include type C connector)
PCB Thickness
1.2 mm
Output Interface
USB 2.0
Image/Video Format
YUY2 & MJPG

Output size

3840x2160
2592x1944
1920x1080
1280x960
1280x720
960x540
848x480
800x600
640x480
640x360
320x240
Video Class Compliant
YES
Device Name
MCY-1180
PID
TBD
VID
0x1BCF
Operating Temperature
0℃ to +70℃
Storage Temperature
-40℃ to +100℃

Power Consumption


Min

Type

Max

Input Supply Voltage

4.75

5.0V DC

5.25

Un-configured Current

35 mA

Operating Current

260 mA



Max Frame Rates (fps)


320×240

640×480

1280x720

1920x1080

2592x1944

3840x2160

YUY2

30

30

10

5

1

1

MJPG

30

30

30

30

30

30



   Backend IC Specification

Type
Backend IC with USB2.0 interface
Compatibility
USB Video class Compliant, Microsoft WHQL Certified
Support Sensor Size
Support Most popular CMOS sensors
OS Supported
Windows, Mac, Thin-client

Sensor Specification

Optical format
1/2.8-inch 8.46M CMOS Sensor
Active resolution
3840H×2160V
Unit pixel size
1.45μm x 1.45μm


Lens Specification

F/No.
2.7土5%
Field of View
88.2° (Diagonal)
TV Distortion
<-0.12%
Construction
4 Glass + 2 Plastic
IR Filter
Tavg ≧ 93%  @460~635nm

Digital Microphone Specification

Item

Test Conditions

Min

Standard

Max

Unit

Directivity


Omni-directional

Sensitivity

94dB SPL @ 1KHz

-23

-22

-21

dB FS

Current Consumption



800


μA

S/N Ratio

f=1kHz, Pin=1Pa


61


dB

Max. Input Signal




120

dB SPL

THD+Noise

@100dB SPL, fin=1KHz



1

%


(TA = +15°C ~+25°C, VDD = +1.8V, fclock = 3.072MHz, R.H. = 60%~70%, no load, unless otherwise noted.)



Wide Application for:

Medical equipment, video door phone, smart TV, on-the-spot law enforcement, conference call, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, automated image acquisition system, etc.


About Midas Touch

Midas Touch is a camera modules design house and manufacturer for the Industrial PC industry. The modules not only are customized based on customers’ criteria and/or diversified operating systems but also can be integrated with image sensing-related applications. Well experienced in image sensing and miniature design as a core shall lead to creations for customers. Our Mission: Exceed customers' expectations and offer better camera module solutions all the time!



Payment Details for Offline Orders

  • Payment Terms : TT ,PayPal
  • Minimum Order : 1 Piece(s)

Video

    2K WebCam with Microphones


Last Update : 2021-06-16
