Advanced

Smart Home,Gaming , Display, POS Terminal ,POE power

Model No.
CXC12131256
Made in
Taiwan
Supplier
RAPHAEL ELETRONICS CO., LTD.More About This Product
Request for Quotation

12Vaux For External Fan Cooling, Open Frame, POS Terminal2

Spec

  • Leakage Current : Leakage current < 750uA/230Vac.
  • Efficiency (Typ.) : 90%
  • Power Factor (Typ.)  :  PF > 0.95 / full load
  • Inrush Current (Typ.) : 100A/230Vac half cycle cold start
  • Input Current : 4.5A/115Vac , 2.0A/230Vac
  • Input Frequency : 47 ~ 63Hz
  • Input Voltage Universal Input :  90 ~ 264Vac

Key Features


Features:

  • High Density, High Efficiency>90%
  • Mini. Size, Low Profile 3” x 5” x 1.5”
  • Low Leakage Current <750uA @ 230Vac
  • Safety Compliant With UL60950
  • 12Vaux For External Fan Cooling (Optional)
  • OCP , OVP OTP Protection
  • High Power 200W/Convection , 300W/20CFM Air

Gaming Machine

Features:

  • High Density, High Efficiency>90%
  • Mini. Size, Low Profile 3” x 5” x 1.5”
  • Low Leakage Current <750uA @ 230Vac
  • Safety Compliant With UL60950
  • 12Vaux For External Fan Cooling (Optional)
  • OCP , OVP OTP Protection
  • High Power 200W/Convection , 300W/20CFM Air

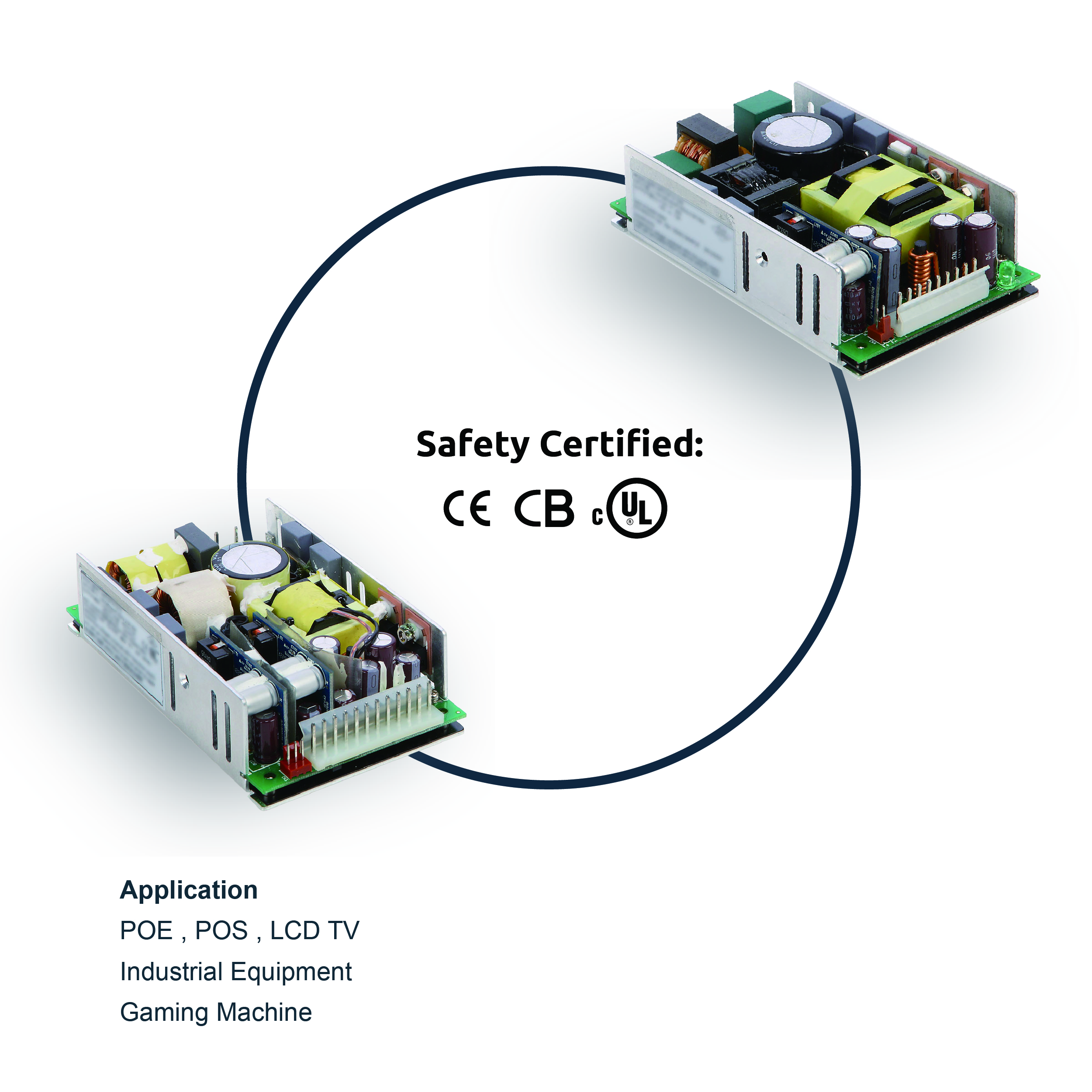

Application:

  • POE , POS , LCD TV
  • Industrial Equipment
  • Gaming Machine



Safety Certified: CB, CUL,CE

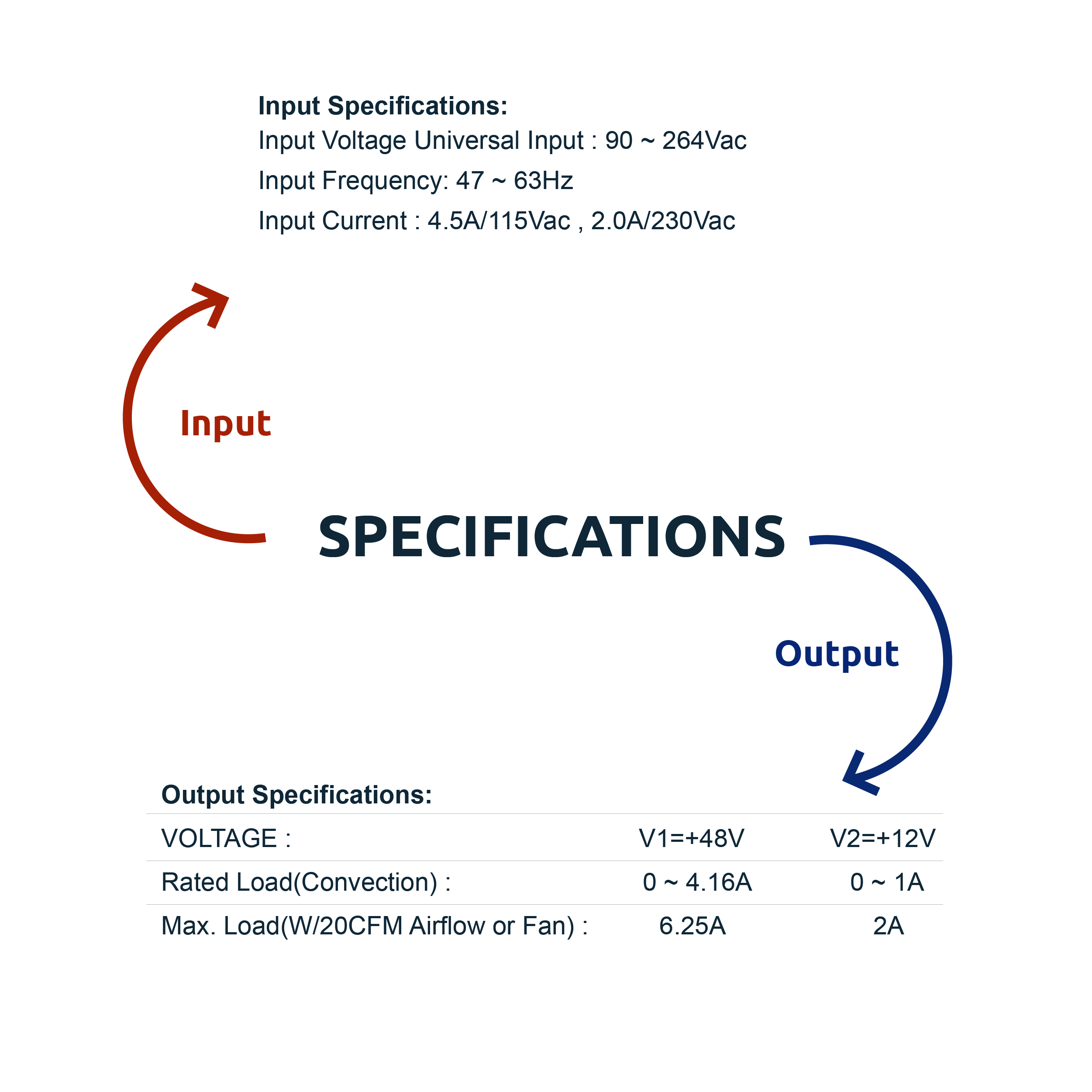

Input Specifications:

  • Input Voltage Universal Input : 90 ~ 264Vac
  • Input Frequency: 47 ~ 63Hz
  • Input Current : 4.5A/115Vac , 2.0A/230Vac
  • Inrush Current (Typ.) : 100A/230Vac half cycle cold start
  • Power Factor (Typ.) : PF > 0.95 / full load
  • Efficiency (Typ.) : 90%
  • Leakage Current : Leakage current < 750uA/230Vac.



Output Specifications:

  • VOLTAGE :V1=+48V , V2=+12V
  • Rated Load(Convection) :0 ~ 4.16A , 0 ~ 1A
  • Max. Load(W/20CFM Airflow or Fan) :6.25A , 2A
  • Ripple & Noise : 480mV , 120mV
  • Regulation : ±3% , ±3%.
  • Power : 200W , 300W

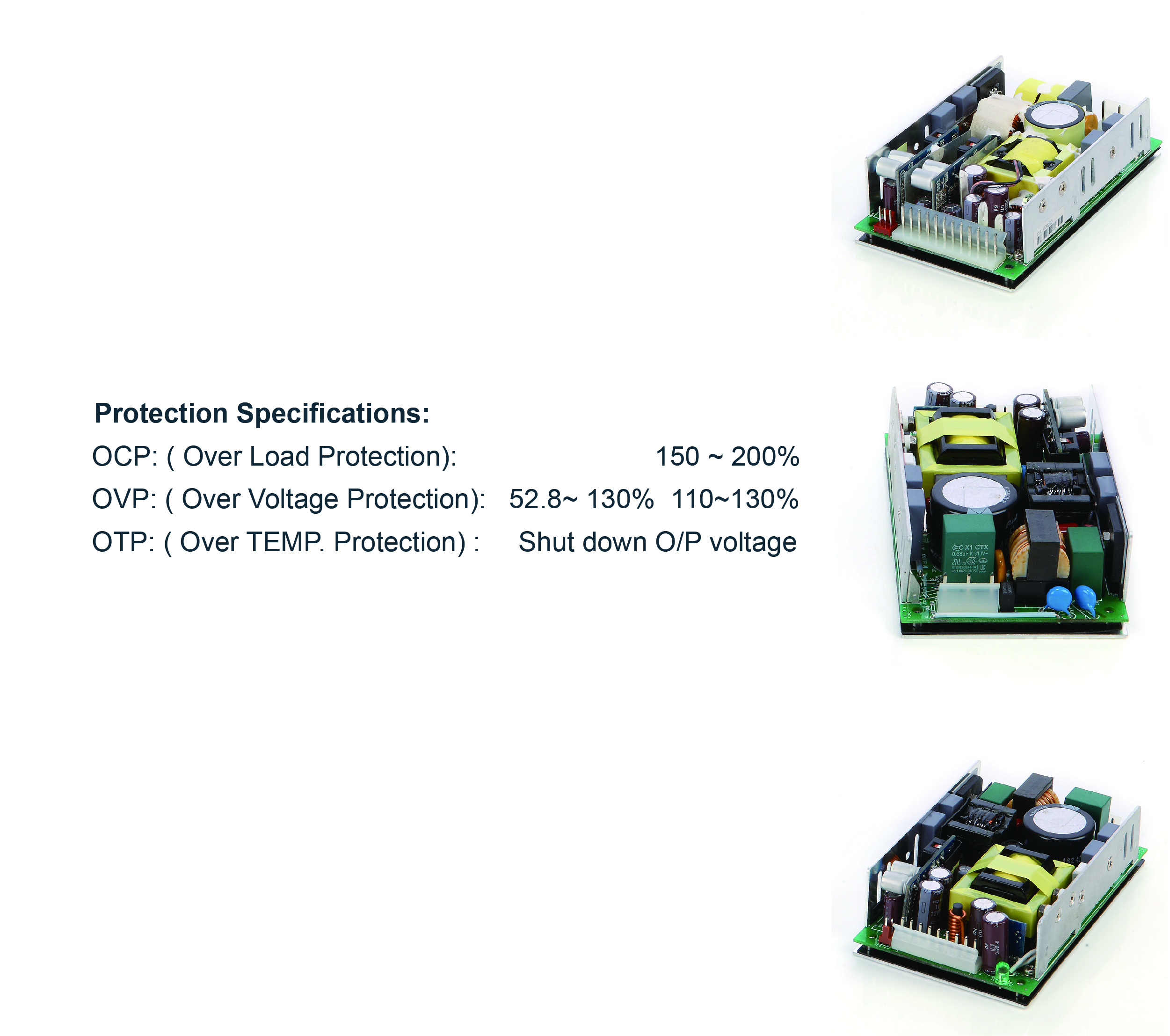

Protection Specifications:

  • OCP: ( Over Load Protection):150 ~ 200%
  • OVP: ( Over Voltage Protection):52.8~ 130%      110~130%
  • OTP: ( Over TEMP. Protection) :Shut down O/P voltage



General  Specifications:

  • Hold UP Time (Typ.) ≧16mS @ 115V
  • Remote Control: N/A
  • DC OK Signal PSU turn on:  Led
  • 12Vaux For External Fan : F12-NF w/o 12Vaux, F12-VF with 12Vaux. @ 1A
  • COOLING : Convection/200W, 20CFM for 300W



Safety & Environmental Specifications:

  • Safety Approvals Required : UL , cUL , CE , FCC
  • Safety Standards: UL 60950-1 2nd , EN 60950-1
  • EMC Emission: EN55022(CISPR22) & FCC Class B.
  • Operating Ambient TEMP. -20 ~ 70℃







Video

    RPS


Last Update : 2019-07-25
