Advanced

Display LCD TV , POS Terminal system

Model No.
CXC15132412
Made in
Taiwan
Supplier
RAPHAEL ELETRONICS CO., LTD.More About This Product
Request for Quotation

High Power 120W/Convection , 200W/20CFM Air

Key Features

Redundant Power

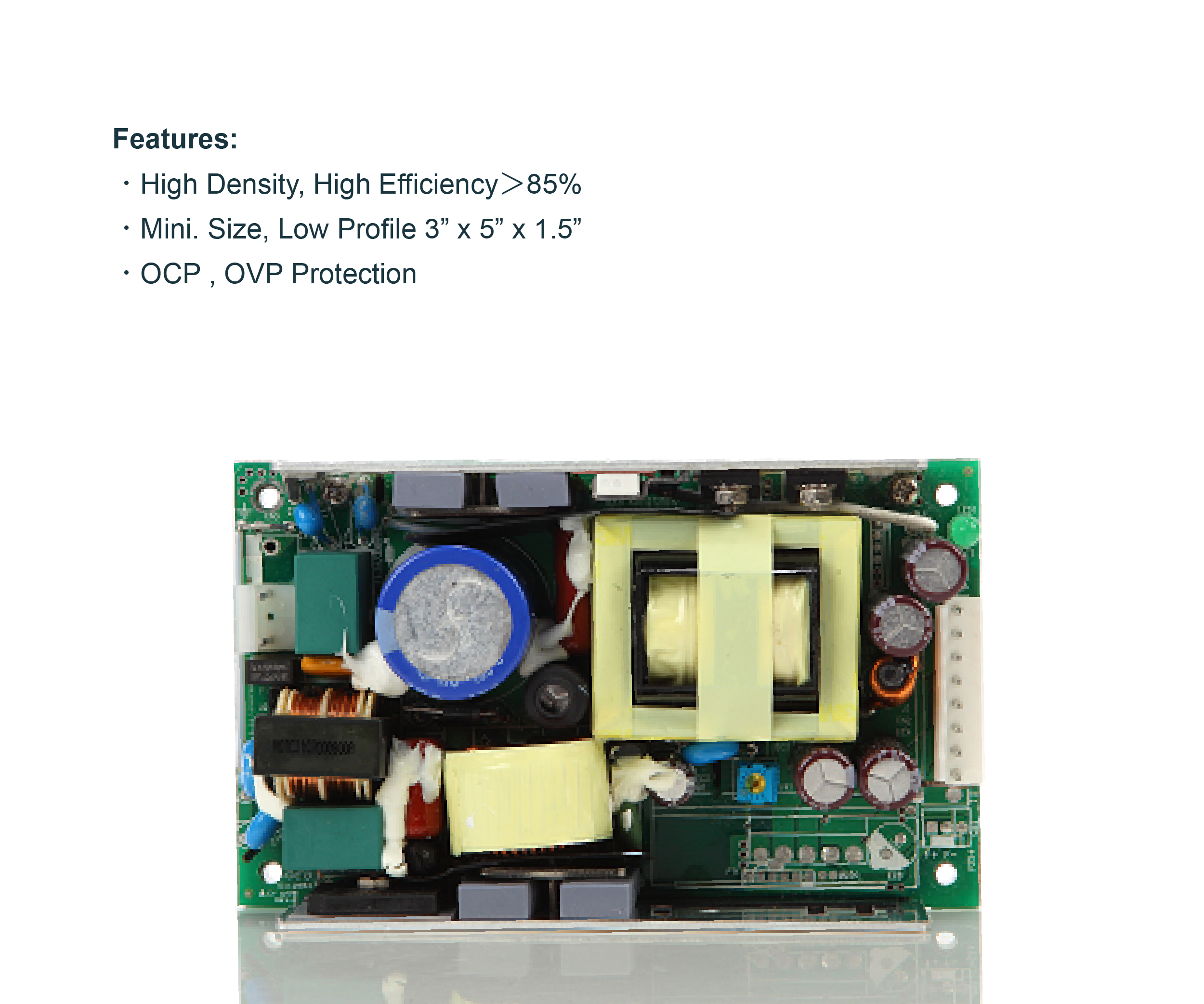

Features:

  • High Density, High Efficiency>85%
  • Mini. Size, Low Profile 3” x 5” x 1.5”
  • Low Leakage Current <750uA @ 230Vac
  • Safety Compliant With UL60950
  • 12Vaux For External Fan Cooling
  • OCP , OVP Protection
  • High Power 120W/Convection , 200W/20CFM Air

 Application:

  • POE , POS , LCD TV
  • Industrial Equipment
  • Gaming Machine



Safety Certified: CB, CUL,CE



Input Specifications:

  • Input Voltage Universal Input : 90 ~ 264Vac
  • Input Frequency: 47 ~ 63Hz
  • Input Current : 2.5A/115Vac , 1.3A/230Vac
  • Inrush Current (Typ.) 100A/230Vac half cycle cold start
  • Power Factor (Typ.) PF > 0.95 / full load
  • Efficiency (Typ.) 88%
  • Leakage Current Leakage current < 750uA/230Vac.



Output Specifications:

  • VOLTAGE +36V
  • Rated Load(Convection) 0 ~ 3.5A
  • Max. Load(W/20CFM Airflow or Fan) 5.5A
  • Ripple & Noise 360mV
  • Regulation ±3% Max.
  • Power: 120W / 200W



Protection Specifications:

  • OCP: ( Over Load Protection) 150 ~ 200%
  • OVP: ( Over Voltage Protection) 110 ~ 130%
  • OTP: ( Over TEMP. Protection) N/A



General  Specifications:

  • Hold UP Time (Typ.) ≧16mS @ 115V
  • Remote Control: N/A
  • DC OK Signal PSU turn on: 3.3~5.6V , PSU turn off: 0~1V
  • 12Vaux For External Fan F11 w/o 12Vaux, F12 with 12Vaux. @ 1A
  • COOLING Convection/120W, 20CFM for 200W



Safety & Environmental Specifications:

  • Safety Approvals Required : UL , cUL , CE , FCC
  • Safety Standards: UL 60950-1 2nd , EN 60950-1
  • EMC Emission: EN55022(CISPR22) & FCC Class B.
  • Operating  Ambient TEMP. -20 ~ 70℃




Payment Details

  • Payment Terms : TT
  • Minimum Order : 300 Piece(s)

Last Update : 2019-08-22
