1080P 60fpts WebCam with 2*Mic

Model No.
MCA-6080
Made in
Taiwan
Supplier
MIDAS TOUCH SOLUTIONS INC.More About This Product
Request for Quotation

1080P 60fpts USB CMOS WebCam with 2*Mic

Spec

  • Style : Mini Camera
  • Technique : Net / Work
  • Operating Temperature : 0-+70C
  • Unit pixel size : 1.62um(h)*1.62um(v)
  • F/No.  : 2.2+/-0.5%
  • Field of view : 95.8
  • Focus : 60cm-3M

Key Features

Overview

MCA-6020 is a USB Video Class (UVC) and USB Audio Class (UAC) compliant camera module with video and audio features, designed for PC image applications. It is made up of the following components, CMOS sensor, lens, holder, backend, PCB, image processing circuit, connector, and microphone, to come out a digital video and audio device. It shall be a reliable device to transfer video and audio data through a USB interface to a PC. MCA-6020 not only offers up to FHD resolution (1920X1080) for image applications to take still images but also offers a video stream for end-user to preview/recording motion images through the USB 2.0 interface.

And It can support VGA (640x480) resolution up to 30 fps at YUY2 mode, FHD resolution up to 60fps at MJPG mode. It also provides stereo audio input by two microphones. MCA-6020 builds in AE, AWB, and AGC for automatic image control supported by CMOS sensor. For image quality control, it also offers UVC standardized User Interface (UI) to let end-user well tune the image by property page.


Features
Compliant to USB2.0 and USB Video Class & USB Audio Class
Support still image capture and video streaming
Automatic image control
Automatic Exposure Control (AEC)
Automatic White Balance (AWB)
Automatic Gain Control (AGC)
Support 1920 x1080 frame rate up to 60fps
Support for still image resolution: 1920(H) x 1080(V)

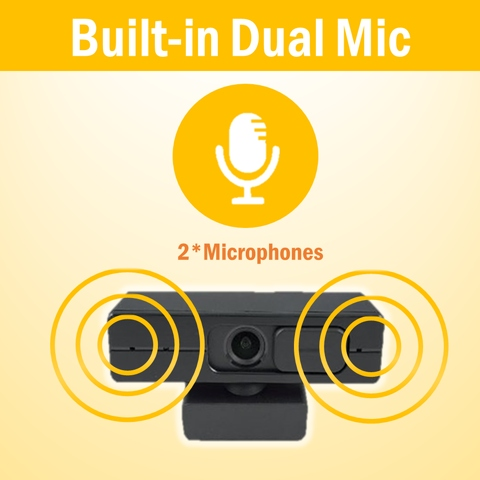

Audio input:2× Microphone (Analog Microphone)
LED indicated (blue)
Input Voltage: DC 5V


Wide Application for:

Medical equipment, video door phone, smart TV, on-the-spot law enforcement, conference call, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, automated image acquisition system, etc.


About Midas Touch

Midas Touch is a camera modules design house and manufacturer for the Industrial PC industry. The modules not only are customized based on customers’ criteria and/or diversified operating systems but also can be integrated with image sensing-related applications. Well experienced in image sensing and miniature design as a core shall lead to creations for customers. Our Mission: Exceed customers' expectations and offer better camera module solutions all the time!
